Motor Drives Application

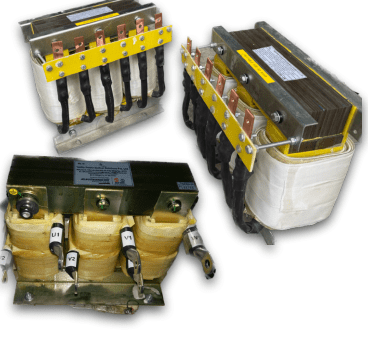

LV Line Reactor
3 Phase Line Reactor for Motor Drives & Power Quality application:
Model : TPSS-FRK
Frequency: 50/60Hz
PHASE : 3
Frequency: 50/60Hz
PHASE : 3
Treffer world quality reactor in-house with automatic winding machine , and laser cut imported lamination with low iron core loss , and 99.99% pure copper conductor for winding , reactor assembled in vacuum chamber with resin dipped – temperature controlled.
Technical Specifications :
Specifications :
- Applicable Standard: IEC 60076-6
- Rating: 4A ………1500A
- Voltage: 480/690 V
